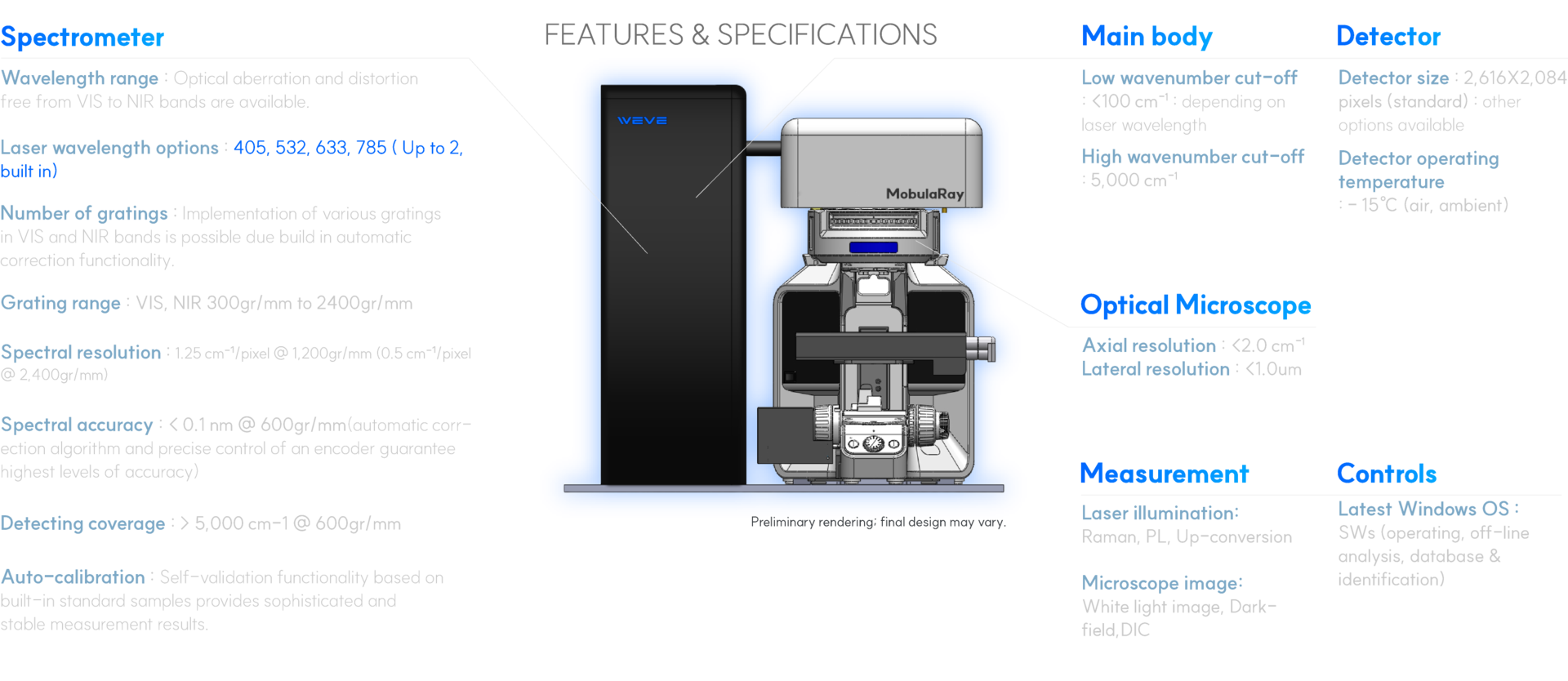

Feature & Specification

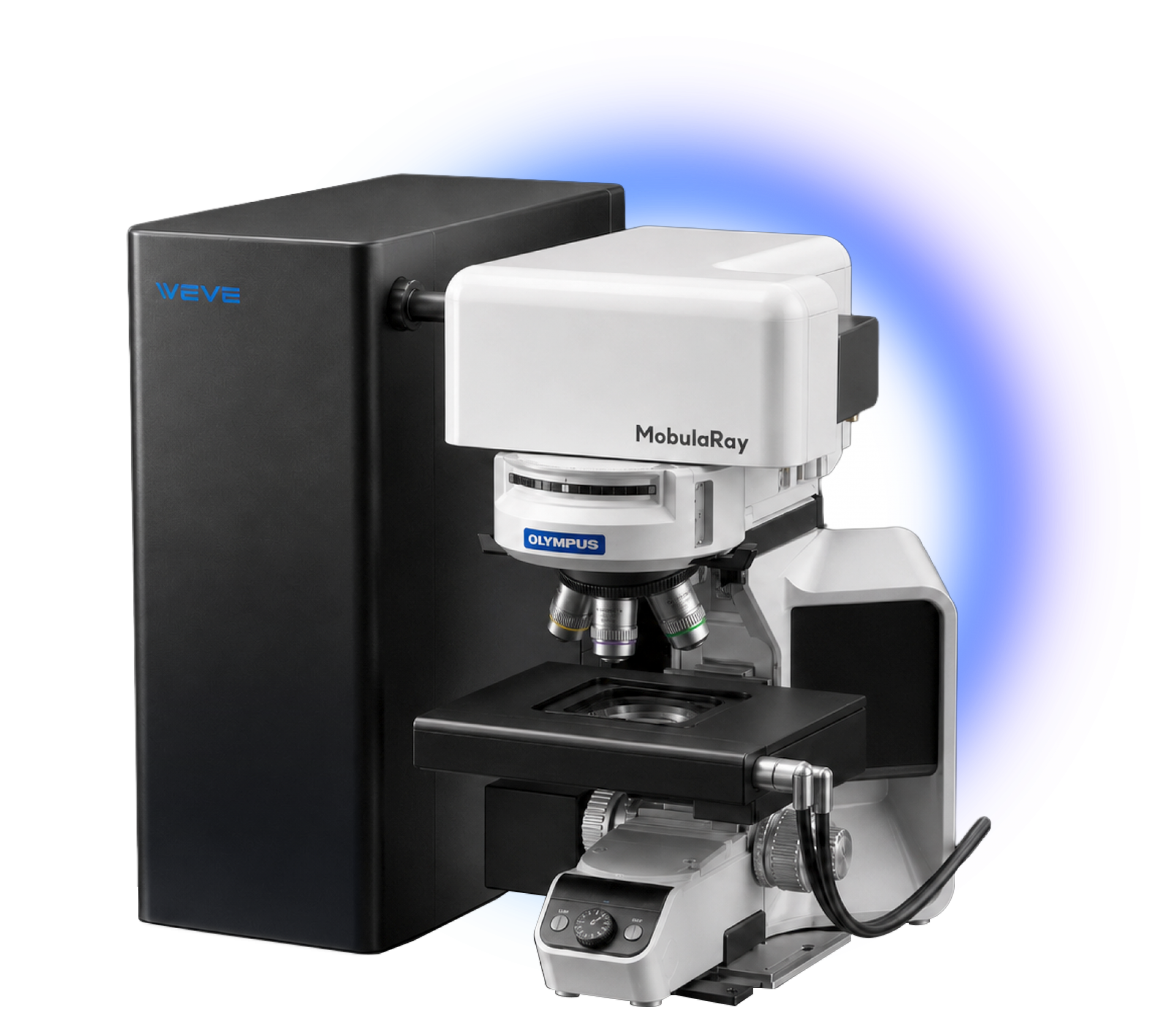

We deliver a user-focused Raman spectroscopy system that ensures ease of use, speed, and precision, through a structurally differentiated design from conventional analytical instruments.

Detector

• Deep-cooled detector
• Pixel Sizez: 3.76 × 3.76 ㎛
• Active pixels: 2,616 × 2,084
• Cooling temperature: −15°C


Motorized microscope xyz stage

• Travel Range: 75 × 52 mm
• Minimum Step Size: 0.05 µm (XY), 0.002 µm (Z)
• Mapping Speed: 50 × 50 pixels < 1 min (based on 0.01 s CCD exposure time)


Laser Module

• SUp to two selectable lasers: 405, 488, 514, 532, 633, and 785 nm (other wavelengths available upon request)
• Precise laser power control using a continuously variable ND filter
• Automatic laser switching



Spectroscopy


• 150 mm focal length aberration-corrected spectrometer
• Spectral resolution:
  <1.25 cm⁻¹ per CCD pixel @ 1200 gr/nm
  <2.5 cm⁻¹ per CCD pixel @ 600 gr/nm



Microscope

• 5× to 100× dry objective lenses
• Spatial resolution: <1 µm (XY)
• Axial resolution: <2.0 µm with a 100×, NA 0.95 objective
• Uniform illumination through precision optical design
• Integrated 3 MP CMOS camera



Automation

• DualTrack™ Automatic Calibration System : Built-in standard lamp and standard sample for continuous equipment monitoring and automatic calibration

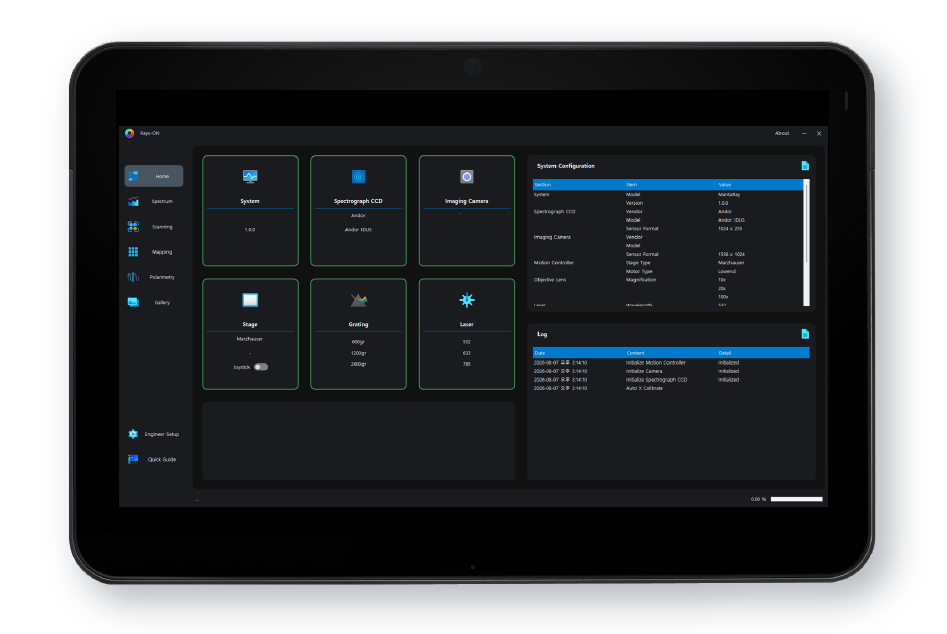

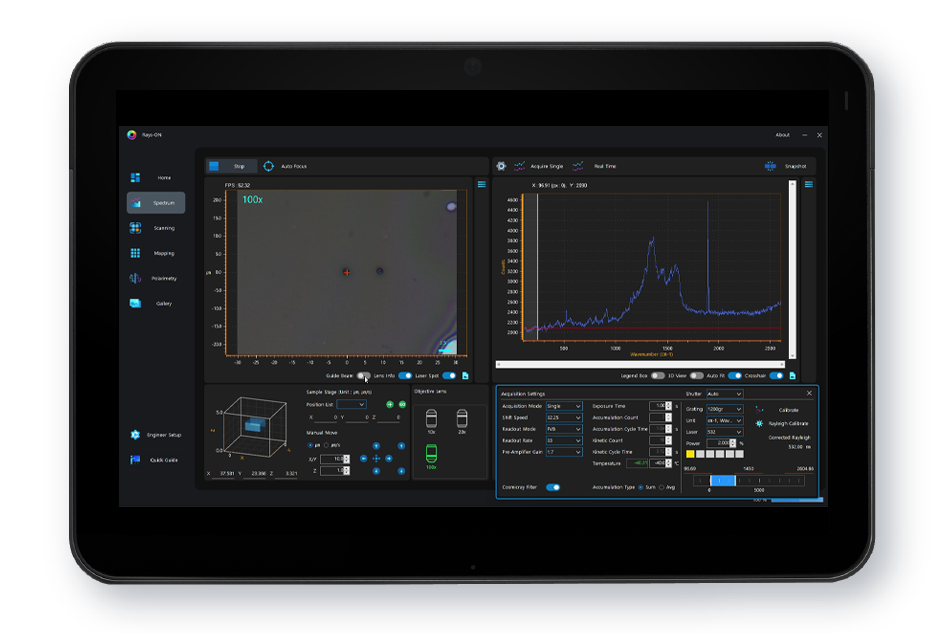

• Fully Automated Control : Automation of measurement, data acquisition, and equipment setup to ensure consistent measurement conditions
